Air Powered Lube Skids

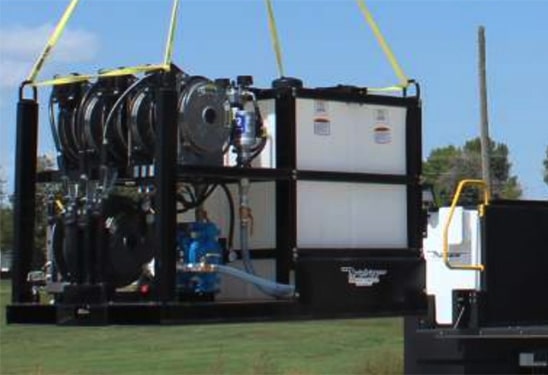

Maintainer’s air‑powered lube skids slide in and out of your mechanics truck or trailer, giving you a fast way to dispense fresh fluids and reclaim waste oil right at the job‑site.
Built from structural tube and 7‑gauge steel, these lightweight yet rugged skids combine customizable tank layouts with integrated tie‑downs and forklift pockets for effortless loading. Four capacity packages (3‑, 4‑ and 5‑pump) let you match the exact mix of oils, antifreeze and grease your fleet needs while keeping total weight in check.
Air Powered Lube Skids Models
Whether you need a compact three‑pump setup or maximum five‑pump capacity, there’s a Maintainer skid sized for your fleet.

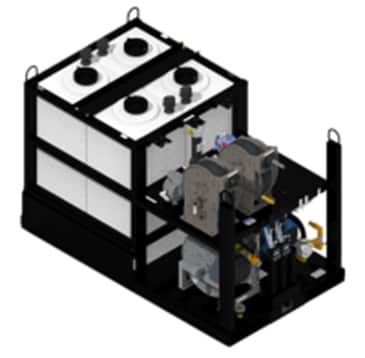

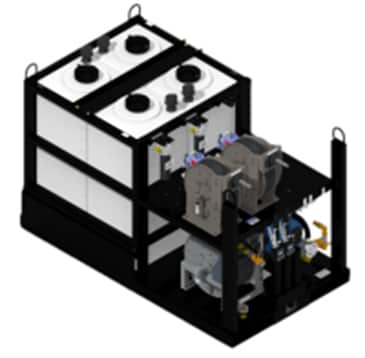

Two 55‑gal fresh‑oil tanks and a 110‑gal waste‑oil tank in a compact three‑pump frame—ideal for basic oil service routes.
- (2) 55‑gal oil, (1) 110‑gal waste
- 75.5 in L × 42 in W × 49 in H
- Empty 1,162 lb ▸ Full 2,020 lb
- Part #021584
Swaps one oil tank for 55 gal of antifreeze to handle coolant top‑offs alongside oil changes.
- (1) 55‑gal oil, (1) 55‑gal antifreeze, (1) 110‑gal waste
- Same footprint as Skid 1
- Empty 1,162 lb ▸ Full 2,047 lb
- Part #021585

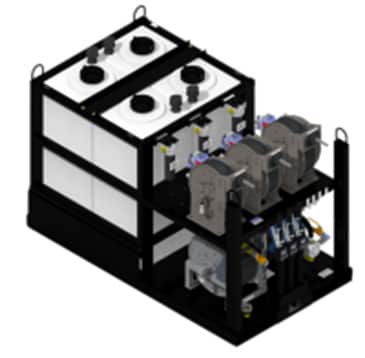

A four‑pump platform carrying three fresh‑oil products plus waste recovery for mixed‑fleet service trucks.
- (3) 55‑gal oil, (1) 55‑gal waste
- 75.5 in L × 42 in W × 49 in H
- Empty 1,312 lb ▸ Full 2,599 lb
- Part #021522

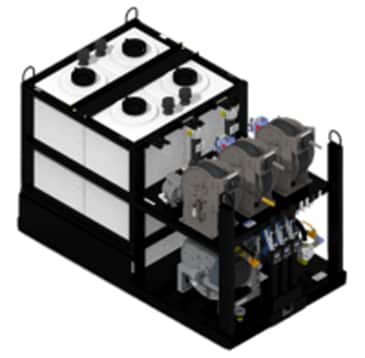

Adds a 55‑gal antifreeze tank to the four‑pump skid—perfect for fleets that service both engine oil and coolant.
- (2) 55‑gal oil, (1) 55‑gal antifreeze, (1) 55‑gal waste
- Empty 1,312 lb ▸ Full 2,626 lb
- Part #021586
Longer chassis with grease capability—two oils, waste recovery and a 120‑lb grease kit in a four‑pump layout.
- (2) 55‑gal oil, 110‑gal waste, grease kit
- 93.5 in L × 42 in W × 55.5 in H
- Empty 1,507 lb ▸ Full 2,485 lb
- Part #021587

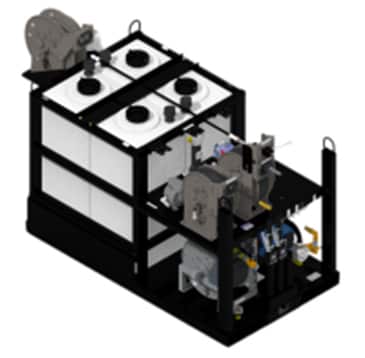

Same extended frame as Skid 5 but replaces one oil tank with antifreeze—delivers four products from a single skid.
- (1) 55‑gal oil, 55‑gal antifreeze, 110‑gal waste, grease kit
- Empty 1,507 lb ▸ Full 2,512 lb
- Part #021588

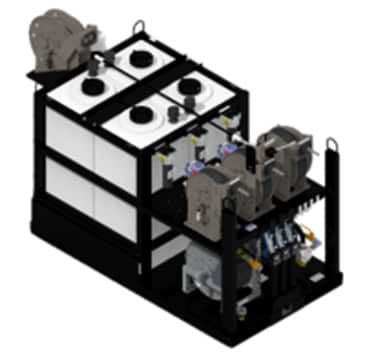

Five‑pump powerhouse with three fresh oils plus grease—built for high‑volume shops working off‑road or remote.
- (3) 55‑gal oil, 55‑gal waste, grease kit
- 93.5 in L × 42 in W × 55.5 in H
- Empty 1,657 lb ▸ Full 3,064 lb
- Part #021589

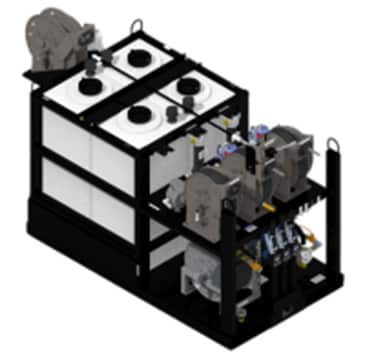

The most versatile five‑pump package—two oils, antifreeze, waste recovery and grease in one self‑contained unit.
- (2) 55‑gal oil, 55‑gal antifreeze, 55‑gal waste, grease kit
- Empty 1,657 lb ▸ Full 3,091 lb
- Part #021590
Every Air Powered Lube Skid ships fully assembled and ready to work, delivering reliable fluid service in minutes.
- Structural tube frame with 7 ga steel containment
- (4) heavy‑duty lifting/tie‑down rings
- Integrated forklift pockets for quick install or removal
- Lifting strap included with each unit
- Product filtration on all new‑oil lines
- Metered dispensers for precise fills
- Air‑powered pumps matched to tank count
- Grease‑drum kit available on select models
- Powder‑coat finish for long‑term durability
Select the tank mix, pump count and accessories that fit your crew, then upgrade as your service needs grow.
- Antifreeze tank in place of a second oil tank
- Grease kit (120 lb drum, pump & reel) on 5‑pump packages
- Choice of three‑, four‑ or five‑pump manifolds
- 110‑gallon waste‑oil tank or 55‑gallon version (model‑dependent)
- Additional reels, meters or filtration stages
