Electric Powered Lube Pro 80 Models
Maintainer’s compact, electric‑powered lube skids slide in and out of mechanics trucks or trailers, delivering fast on‑site fluid service without dedicating a full lube body.

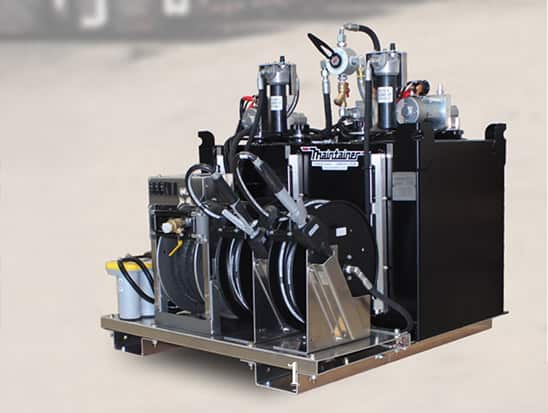

The Lube Pro 80 family packs three‑pump fluid service capability into a lightweight, fork‑liftable skid that measures just 49.5″ L × 46″ W × 47.5″ H. Each unit carries two fresh‑oil tanks and a used‑oil recovery tank, complete with metered dispensers, air‑operated pumps, and 50‑foot hose reels. Because the skid is fully self‑contained, you can convert virtually any ¾‑ton or larger platform, service body, or trailer into a professional lube truck within minutes and remove it just as quickly.
Electric Powered Lube Pro 80 Models Models
Below are the two standard electric‑drive models; each ships ready for plug‑and‑play 12‑ or 24‑volt operation and can be customized further on request.

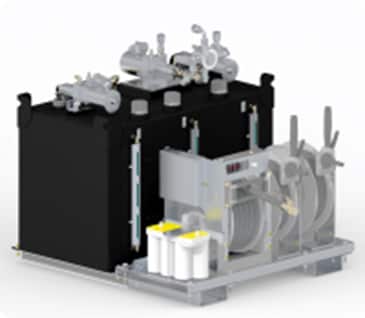

Base electric model with three pumps, fresh‑ and waste‑oil capacity, and the lightest dry weight—ideal when vehicle air supply is already available.
- Empty weight 675 lbs; wet weight 1,207 lbs
- No air service reel; no in‑line oil filters
- Part # 028948

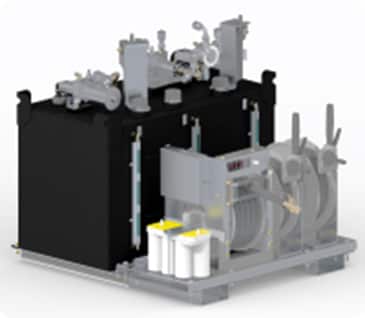

Adds full‑flow filtration on all product lines to the base skid—perfect for fleets that demand maximum fluid cleanliness without the need for an onboard air reel.
- Empty weight 690 lbs; wet weight 1,222 lbs
- In‑line filters on all fresh‑oil circuits
- No air service reel (can be added later)
- Part # 028947
The Lube Pro 80 skids share a common aluminum construction and fluid‑handling package that balances payload, durability, and ease of service.
- Footprint: 49.5″ L × 46″ W × 47.5″ H (skid complete)
- Two 38‑gallon fresh‑oil tanks and one 50‑gallon used‑oil tank
- 5:1 air‑operated pumps (2–4 gpm depending on fluid)
- ½” × 50′ oil hose reels with digital metered non‑drip dispensers
- 1″ × 30′ evacuation reel for waste oil
- Modular design—tanks and reel assembly separate for easy handling
- Integral fork pockets for quick loading/unloading
- All‑aluminum framework for corrosion resistance and low weight
Choose the configuration that matches your workflow—add filtration, an on‑board air reel, or both to streamline service stops and protect today’s precision equipment.
- Air Reel Package – ½” × 50′ air hose reel mounted to skid (models ending in “A”)
- High‑Efficiency Oil Filters – in‑line filtration for each product pump (models ending in “F”)
- Combined Air Reel & Filter Package – maximum convenience and fluid cleanliness (“FA” build)
- No‑Reel/No‑Filter Base Package – lightest weight and lowest cost option
