Maintainer Bolt Bins
Maintainer Bolt Bins keep fasteners, fittings, and other small parts organized, protected, and ready for work. Each unit features a lightweight .090‑inch aluminum housing with composite bins rated at 25 lb apiece, plus an aluminum telescoping top shelf that matches Maintainer’s DuaLock drawers. Choose the standard 18.5‑inch depth or the optional 12.5‑inch depth, and mix or match configurations to fit virtually any service‑body compartment.
Maintainer Bolt Bins are engineered for rugged mobile use while staying light enough for fuel‑saving payloads. The corrosion‑resistant aluminum frame and shelves pair with high‑strength composite bins and removable dividers, giving technicians quick visual access and simple re‑arrangement on the job. With eight ready‑to‑ship layouts—and custom builds up to 8 bins wide by 8 levels high—there’s a Bolt Bin solution for every parts‑storage challenge.
Maintainer Bolt Bins Models
A quick guide to the eight in‑stock configurations; all ship with composite bins, dividers, and top shelf.
Compact three‑wide unit ideal for service bodies with limited side‑pack width.
- 9 composite bins
- Overall width ≈ 18 in
- 18.5 in or 12.5 in depth

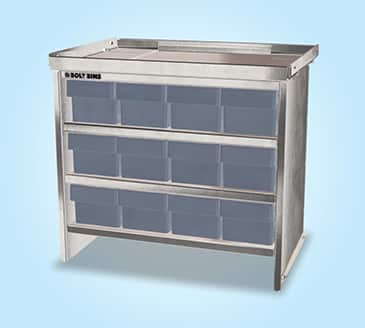

Balanced footprint for mid‑size compartments requiring extra assortment capacity.
- 12 composite bins
- Rough width ≈ 24 in
- Includes top shelf & dividers

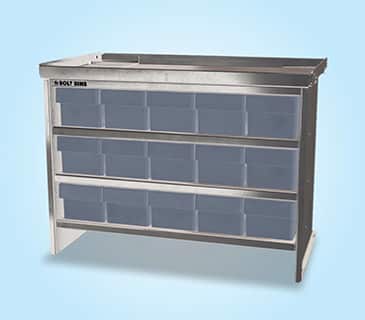

Five‑wide layout maximizes parts storage without excessive height.
- 15 composite bins
- Width ≈ 30 in
- Lightweight aluminum frame

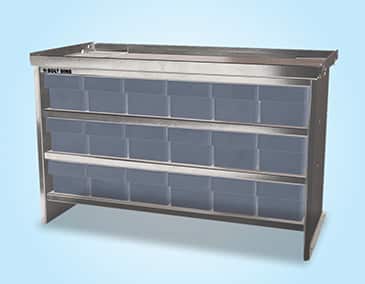

Six‑wide version for technicians who need broad, shallow access across the shelf.
- 18 composite bins
- Width ≈ 36 in
- Standard 18.5‑in depth
Tall, space‑saving tower for vertical compartments or inside van packages.
- 18 composite bins
- Height ≈ 36 in
- Optional reinforcement added
Mid‑height, four‑wide unit blends capacity with manageable reach.
- 20 composite bins
- Height ≈ 30 in
- Telescoping top shelf standard

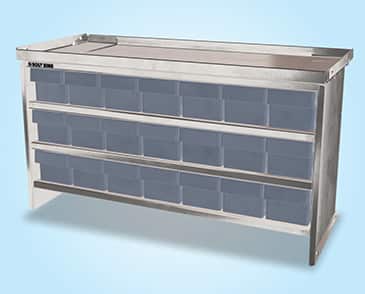

Wide, low‑profile solution when side‑pack width is plentiful.
- 21 composite bins
- Width ≈ 42 in
- Three tiers for easy top access

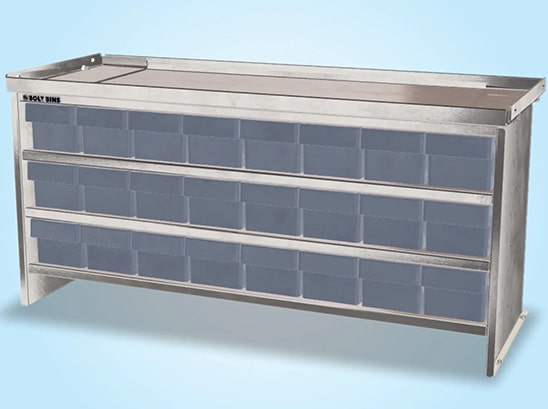

Maximum standard width for extensive assortment needs in large bodies.
- 24 composite bins
- Width ≈ 48 in
- Same lightweight aluminum construction
Every Bolt Bin is built to handle everyday field abuse while keeping payload organized and secure.
- .090‑inch aluminum housing and shelves resist corrosion and reduce weight
- Composite bins each rated for 25 lb mobile / 500 lb static capacity
- Telescoping aluminum top shelf extends 6 inches per side for convenient work surface
- Includes three removable aluminum dividers per bin for flexible compartment sizing
- Standard depth 18.5 in; alternative 12.5 in depth available
- Reinforced frames automatically added for units taller than 42 in or heavier than 200 lb
Tailor Bolt Bins to unique fleet requirements with custom sizes and accessories.
- Custom depths in 2‑inch increments
- Custom configurations up to 8 bins wide × 8 levels high
- Alternate 12.5‑inch shallow depth for tight compartments
- Additional divider sets and labeling kits
