Electric Cranes

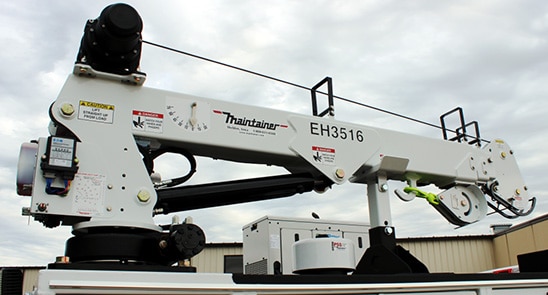

Maintainer’s electric‑hydraulic (EH) crane lineup delivers dependable lifting power for service trucks that need the convenience of electric operation without sacrificing performance. Three models cover capacities from 3,500 lb to 5,500 lb so you can match the right crane to your workload.

Maintainer EH cranes pair rugged steel construction with a self‑contained 12 V electric‑hydraulic power‑unit, giving you true plug‑and‑play installation and quiet, fuel‑saving operation in the field. Standard features like planetary winches, wireless remotes and OSHA/ANSI compliance make every lift safer and faster, while model‑specific ratings let you choose exactly the reach and capacity your crew requires.
Electric Cranes Models
Choose from three electric‑hydraulic crane models engineered to match a range of service‑truck sizes and job demands.

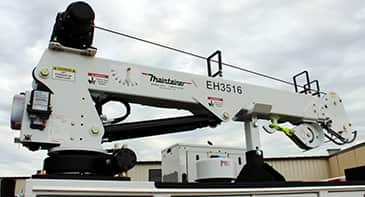

Compact 16 ft boom crane ideal for light‑ and medium‑duty service bodies that still need true 3,500 lb lifts.
- 15,000 ft‑lb crane rating
- 3,500 lb max lift • 16 ft full hydraulic extension
- -13° to +78° boom elevation
- Crane weight ≈ 1,030 lb

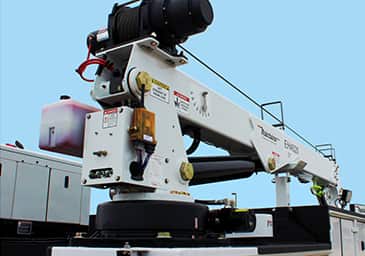

Model Short Description: A popular mid‑range unit delivering 4,500 lb lifts and 20 ft reach for general construction, utility and municipal fleets.
- 20,000 ft‑lb crane rating
- 4,500 lb max lift • 20 ft full hydraulic extension
- 580° continuous rotation
- Crane weight ≈ 1,450 lb

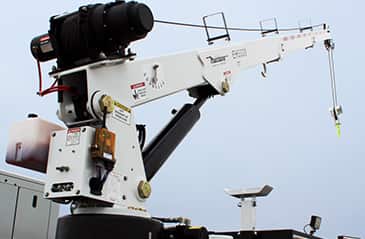

Highest‑capacity electric model—5,500 lb lifts with the same 20 ft reach, perfect for heavier field repairs and equipment swaps.
- 30,000 ft‑lb crane rating
- 5,500 lb max lift • 20 ft full hydraulic extension
- 580° continuous rotation
- Crane weight ≈ 1,450 lb
All EH series cranes share a proven feature set that maximizes operator safety, visibility and productivity on the jobsite.
- Planetary winch with drum & rope outside boom for clear line‑of‑sight
- Integrated anti two‑block and full function overrides
- Wireless proportional remote control (tethered pendant optional)
- Safety counterbalance valves machined into cylinders
- 478° (EH3516) or 580° (EH4520 / EH5520) continuous rotation
- Self‑contained 12 V DC hydraulic power‑unit, 4 gpm @ 50 psi
- OSHA 1910.180 & ANSI B30.5 compliant design
- Heavy‑duty 18″ × 18″ base plate with Grade 8 bolt pattern
- Open/closed‑center chassis hydraulic port ready (9 gpm @ 2,500 psi)
- 90 ft (EH3516) or 105 ft (EH4520/EH5520) high‑strength wire rope
Select the model that best fits your lifting requirements, or add accessories to fine‑tune control and power‑management.
- EH3516 — 15,000 ft‑lb rating, 16 ft reach, 3,500 lb max lift, 478° rotation
- EH4520 — 20,000 ft‑lb rating, 20 ft reach, 4,500 lb max lift, 580° rotation
- EH5520 — 30,000 ft‑lb rating, 20 ft reach, 5,500 lb max lift, 580° rotation
- Toggle/trigger‑style wireless transmitter in place of pistol‑grip remote
- Tethered 30 ft hand‑held pendant for backup or high‑interference sites
- Battery isolator to protect chassis batteries from crane current draw
