Hydraulic Cranes

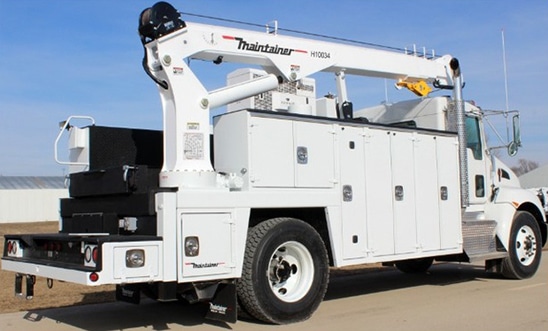

Maintainer’s hydraulic‑powered crane family ranges from compact 3,500‑lb units to 14,000‑lb heavy lifters, all designed around the industry‑standard 14.75" × 14.75" bolt pattern for easy body integration. Every model pairs dependable planetary winches with proportional wireless control, delivering smooth, precise handling in construction, maintenance, municipal and utility applications.
Maintainer hydraulic cranes combine long‑reach booms (16 ft – 34 ft) with high foot‑pound ratings (15,000 – 90,000 ft‑lb) to give crews more capacity without adding excess weight. Short‑tower H‑Series models serve service‑truck envelopes, while the numerically‑named 65‑, 75‑, 85‑ and 100‑Series expand lifting power up to 14,000 lb. A standard 12 V self‑contained power pack (3 gpm) and thermal‑protected motor keep cycle times quick and components safe.
Hydraulic Cranes Models
Below is a quick guide to every hydraulic model currently offered so visitors can match reach and capacity to their application.

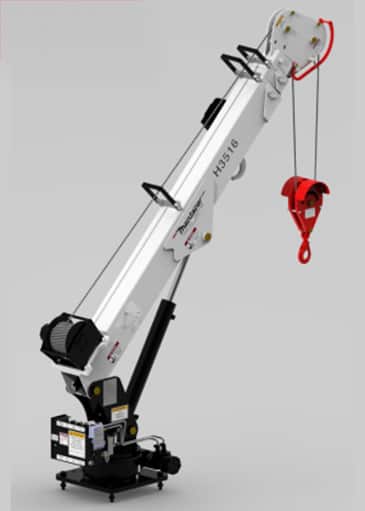

15,000 ft‑lb short‑tower crane with 16 ft boom—ideal for light‑medium service bodies needing 3,500 lb lifts.
- Max lift 3,500 lb
- 16 ft hydraulic extension
- 478° rotation
- Crane weight 1,030 lb

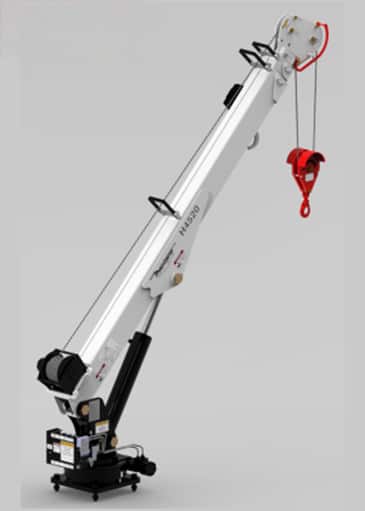

Mid‑range short‑tower unit delivering 4,500 lb at 20 ft with a 20,000 ft‑lb rating.
- Max lift 4,500 lb
- 20 ft hydraulic extension
- 580° rotation
- Crane weight 1,450 lb

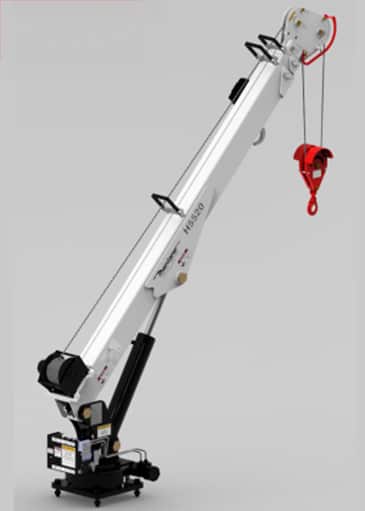

30,000 ft‑lb crane for 5,500 lb lifts; shares compact tower with H‑Series siblings.
- Max lift 5,500 lb
- 20 ft hydraulic extension
- 580° rotation

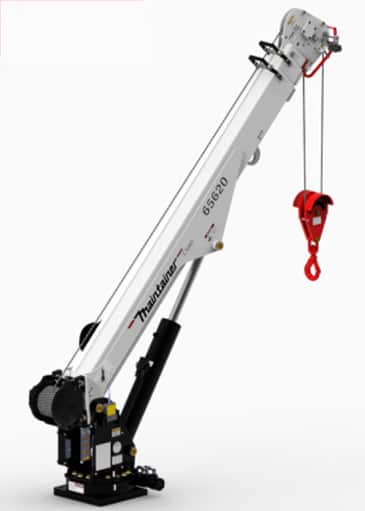

40,000 ft‑lb class, 6,500 lb max, 20 ft reach—step‑up choice for heavier service trucks.
- Max lift 6,500 lb
- 20 ft reach
- Compact stowed envelope

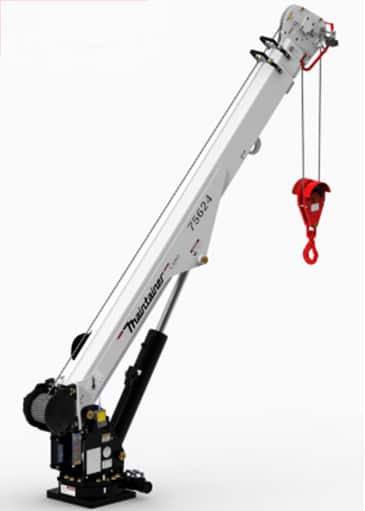

24 ft boom variant of 47,000 ft‑lb crane, lifting up to 7,500 lb.
- Max lift 7,500 lb
- 24 ft reach
- Wireless remote standard

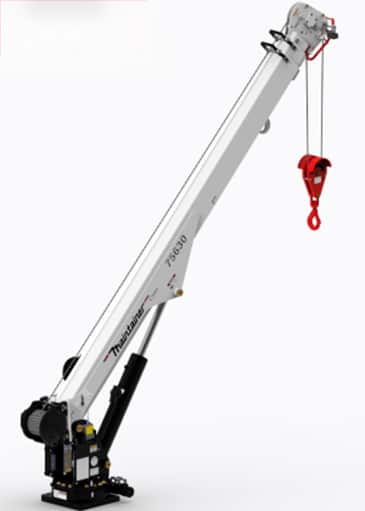

Same 47,000 ft‑lb rating with 30 ft boom for extended work radius.
- Max lift 7,500 lb
- 30 ft reach
- 580° rotation

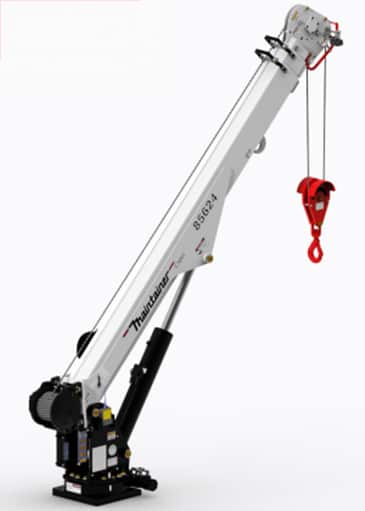

52,500 ft‑lb crane offering 8,500 lb capacity on a 24 ft stick.
- Max lift 8,500 lb
- 24 ft reach
- Enhanced structural strength

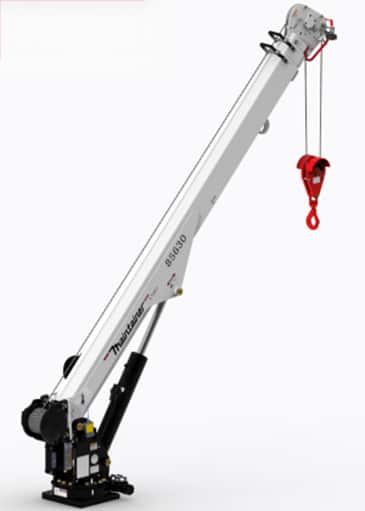

Extends 52,500 ft‑lb design to 30 ft reach while maintaining 8,500 lb lift.
- Max lift 8,500 lb
- 30 ft reach
- Heavy‑duty boom sections

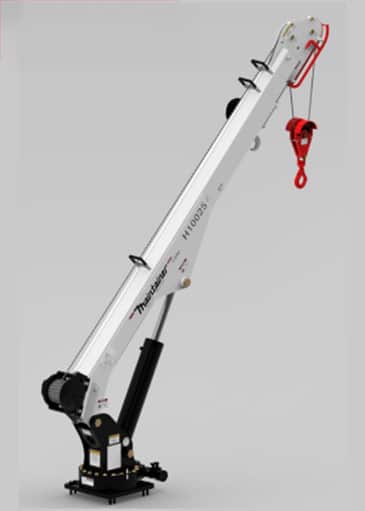

75,000 ft‑lb flagship with 25 ft reach, handling 10,000 lb for big‑rig service bodies.
- Max lift 10,000 lb
- 25 ft reach
- High‑strength steel boom

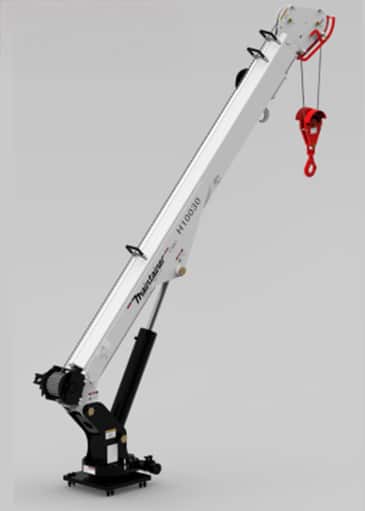

Same 60,000 ft‑lb rating but 30 ft boom; balances reach and payload at 10,000 lb.
- Max lift 10,000 lb
- 30 ft reach
- Standard wireless remote
All Maintainer hydraulic cranes share a common core of safety and performance equipment that protects operators, payload and chassis.
- Planetary winch mounted outside boom for clear line‑of‑sight
- Anti two‑block safety system on every model
- Full system overrides for all crane functions
- Rotation: 478° (H3516) / 580° (all other models)
- OSHA 1910.180 & ANSI B30.5 compliance
- Counter‑balance holding valves integrated in cylinders
- Proportional wireless remote with charging dock & spare battery
- Universal 14.75″ × 14.75″ grade‑8 bolt pattern (11.5″ option on H3516)
- 18″ × 18″ base plate
- Hydraulic boom extension: full to 16 ft (H3516) or 20‑30 ft, model‑dependent
- Self‑contained 12 V DC power pack with 3 gpm flow & thermal shutdown
- Hydraulic supply (truck PTO): open/closed center, 9 gpm @ 2,500 psi
Selectable options let you tailor each crane to job requirements or fleet standards.
- Toggle/trigger style wireless remote in place of standard pistol‑grip
- Tethered pendant control for backup or confined‑space operation
- Battery isolator to charge crane battery while protecting chassis system
- Model‑specific upgrades:
- Long‑boom packages to 24 ft (65‑ & 75‑Series) or 34 ft (100‑Series)
- Higher foot‑pound ratings (up to 90,000 ft‑lb) for heavier picks
- Extended lift capacities to 14,000 lb (H14025)
