Multi‑Tank Oil Trailer (MTO)
The Thunder Creek Multi‑Tank Oil trailer (MTO) combines bulk diesel, oil, coolant, reclaim, grease, and DEF on a No‑HAZMAT, multi‑tank platform. The MTO can be equipped with up to six service fluids and is a popular choice for industry professionals looking to perform job‑site service and small‑quantity fuel delivery.

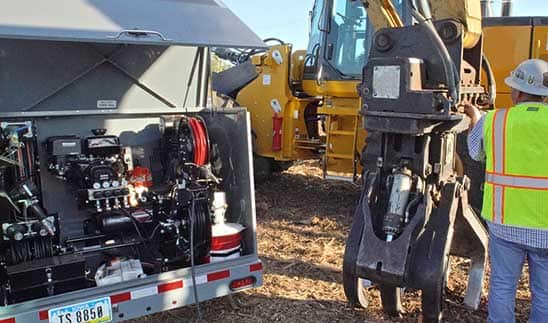

The Multi‑Tank Oil (MTO) Trailer is a hybrid preventive‑maintenance and fueling solution that handles up to 920 gallons across six service fluids—oil, coolant, reclaim, diesel, DEF, and grease—and can be outfitted with power systems for true mobile service. By eliminating HAZMAT and often CDL requirements, it lets any trusted employee move critical fluids between jobsites, boosting uptime and keeping heavy equipment running.
Multi‑Tank Oil Trailer (MTO) Models
Choose from three capacities to match fleet size, fluid demands, and tow‑vehicle ratings. Each model accepts the same fluid, DEF, and power options.

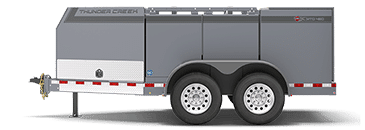

460‑gallon configuration suited for mid‑size fleets needing compact service capability without HAZMAT requirements.
- Total capacity • 460 gal
- (4) 115‑gal or mixed 25/55‑gal tanks
- Dual 5,000 lb torsion axles • 10,000 lb GVWR
- Empty weight • 6,000 lb

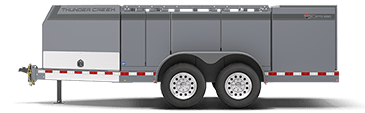

690‑gallon configuration for larger fleets or multi‑site operations that require more on‑board fluids per trip.
- Total capacity • 690 gal
- Combination of 25/55/115‑gal tanks
- Dual 6,000 lb torsion axles • 12,000 lb GVWR
- Empty weight • 6,500 lb

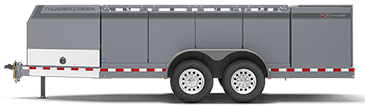

920‑gallon flagship model delivers maximum fluid capacity for high‑hour equipment or remote sites where refills are costly.
- Total capacity • 920 gal
- Multiple 115‑gal and smaller tanks
- Dual 7,000 lb torsion axles • 14,000 lb GVWR
- Empty weight • 7,000 lb
The MTO comes ready for work with heavy‑duty construction, secure enclosures, and user‑friendly fluid systems that protect your investment and make daily service simple.
- Front enclosure with jack, battery, fire extinguisher, and optional DEF system
- Rear utility box with pumps, reels, nozzles, and power unit
- Automatic interior LED lighting and lockable, weather‑sealed doors
- 25‑, 55‑, and 115‑gallon steel tanks totaling 460, 690, or 920 gallons
- Color‑coded couplers, Spinsecure™ vented caps, and sight gauges
- 7.5 in. formed steel frame with Dexter® torsion axles and electric brakes
- 16‑in. 10‑ply tires, adjustable 2 5⁄16‑in. ball hitch, and safety tow chains
- Dual‑coat polyurethane paint, bolt‑on fenders, and diamond‑plate rock guard
Enhance productivity and tailor the trailer to your operation with additional fluids, power systems, and convenience upgrades.
- 100‑gal ISO‑22241 DEF delivery system with closed‑path 2‑in‑1 pump
- Grease system with 50 ft retracting reel and PumpMaster 4 55:1 pump
- Cast‑iron two‑stage air compressor (35 CFM @ 100 PSI) with 50 ft hose
- Compressor/generator combo: 17.2 CFM compressor + 3,500 W generator
- 14‑ply tires, aluminum wheels, custom paint colors
- Electric/hydraulic jack, solar battery maintainer, spare‑tire kit
- Spill‑containment kit and static‑discharge reel
- WorkSight LED light tower (7,200 lumens, 100 ft coverage)
